I-Purge®充气管吹扫系统
产品型号：I-Purge®
产品品牌：AQUASOL
产品简介： 最灵活且适应性强的管道净化解决方案
产品介绍

I-Purge®充气管吹扫系统

关于

革命性的、正在申请的I-Purge模块化充气气囊系统是目前创新性和多功能性的管道排气系统。I-Purge在管道排气和焊接过程中创造了不透水密封，限度地减少了排气，节省了时间和成本，同时实现了稳定且高质量的焊接效果。

该系统在美国制造，长期可重复使用气囊系统使操作员能够通过一个可互换方案满足各种排气需求。I-Purge配备了多项高度的功能，如快速连接接头，可卡入并方便组装和拆卸组件。I-Purge还配备了加长且高耐热的束带，使气囊能够放置在热影响区之外，并足以适应任何预热或高温应用。

这些的功能使操作员能够创建多种配置，包括单面管塞和减管器。气囊尺寸从2英寸到70英寸（51-1778毫米）不等，可以单独购买，也可以作为整套系统购买，如果需要更大尺寸或更换部件，这是一项明显的优势。

I-Purge非常适合制造车间，凭借其的设计超越现有技术，为所有管道清洗需求提供完整解决方案

特色与优势

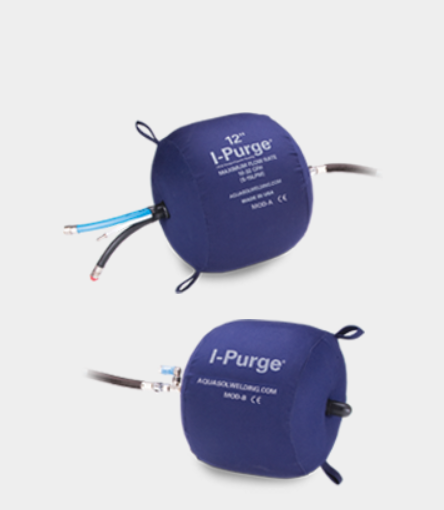

充气水囊模块A和B型

  • 在美国制造，采用品质的材料

  • 充气的气囊在管道壁上形成不透水、气密的密封

  • 防火花、耐用的外墙

  • 重型室内充气包

  • 可重复使用且持久的溶液，用于清洗同一直径的多根管道



高温延长背带


  • 内部软管和保护性外部玻璃纤维套筒，能够承受高达1200°F（650°C）的高温

  • 柔性桥式线束可以轻松穿过管道，包括弯头和三通，超过90°

  • 抗扭结软管确保持续供气

  • 配备发光指示器，确保根隙准确对齐

  • 市面上有多种长度的线束，以适应预热和高温应用中的热影响区（HAZ）

  • 36英寸及以上的I-Purge配备高流量线束以加快充气速度

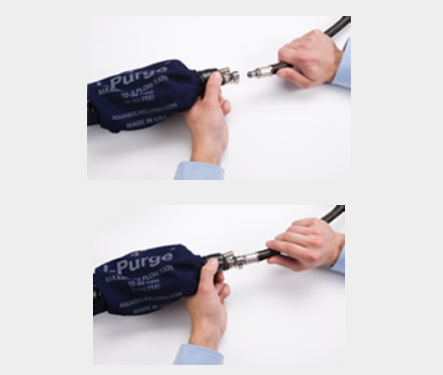

快速连接可更换接头

  • 按钮功能使模块能在几秒钟内卡入定位

  • 的技术带来了更大的灵活性和易于组装——使用户能够创建多种配置

  • 更换和更换组件简便，避免昂贵的重新购买整套系统，备件可购买

  • 防腐蚀的成熟锁具，确保牢固连接


专有的泄压阀

  • 工厂预设的泄压阀实现流量，同时缩短安装时间并减少气体消耗

  • 有助于维护管道壁的密封

  • 防止过度通胀的风险

  • 低矮型安全阀适用于2英寸和3英寸型号

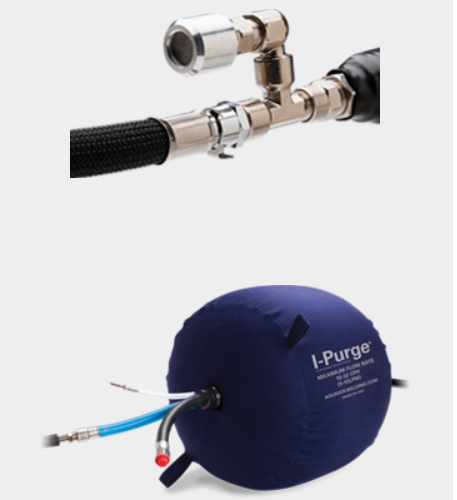

惰性气体扩散器

  • 申请中技术

  • 通过均匀分散惰性气体在焊区内各个方向，减少湍流，提高焊缝质量和一致性

  • 三流内管系统（蓝、黑、白三色软管）
  • 多个进排气口，加快效率
  • 独立连接：

  • 蓝色——气囊
    膨胀 初始功能是充气气囊，然后用稀有气体充盈焊缝区

  • BLACK – 增加焊接区
    内气体分布 为了加快清洗，次级（BLACK）净化软管用于向焊接区注入惰性气体并加快氧气的排气速度

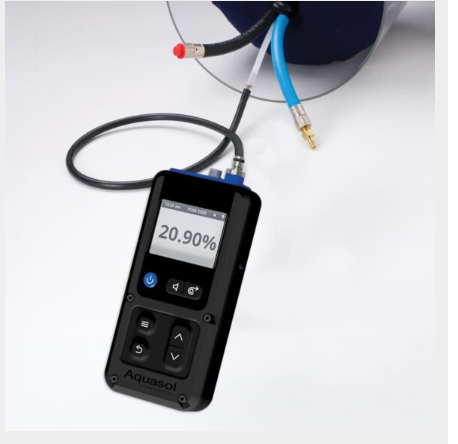

    白色 – 排气连接
    将此软管连接到氧气监测器，如Aquasol的POM-100B，可获得低100 PPM（0.01%）的读数，用于焊接区的持续或点氧监测    ®

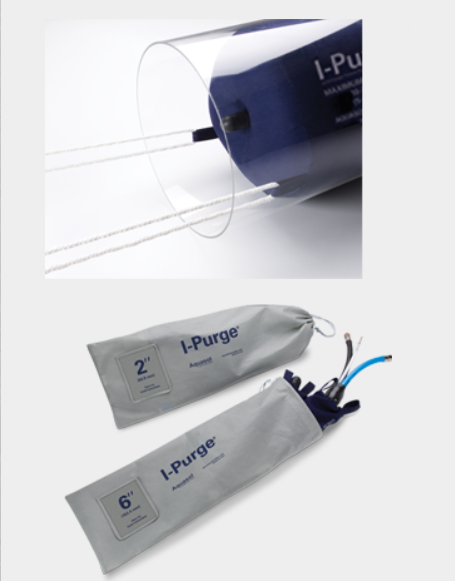

拉环

  • 强力拉环可以连接到绳索或链条上，用于插入或取出I-Purge。

  • 在放置或取出前，膀胱必须放气

  • 应在拉线上施加中等张力（约5磅），以防止线束在安装和作过程中下垂














携带包

  • 焊接完成后，气囊可以放气、取出、清洗，并存放在提供的携带袋中

  • 在大多数工业工作环境中，携带袋在未使用时可以保护膀胱免受灰尘和杂物的侵害，延长使用寿命












I-净化减针

  • 与其他带有接头的型号不同，管子减小器只需简单连接两个直径不同但相似的气囊即可轻松制作

  • 将不同尺寸的管道组合起来，创造的管道配置

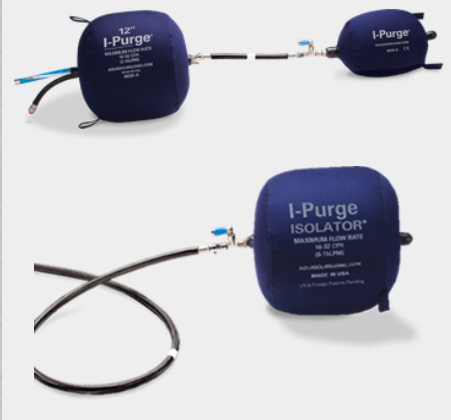

I-Purge 隔离器充气管塞和单排气囊

  • I-Purge隔离器设计为作为管道塞，适用于多种应用，包括阀门或罐体的清洗，以及非清洗的管道系统密封等维护、清洁和检查等应用

  • 采用重型材料建造，旨在承受石化、公用事业和建筑行业的极端环境

I-Purge® 隔离器适配器：

充分利用我们的模块化设计！

将您的I-Purge®双袋系统改造成单侧隔离器，以应对复杂的焊接几何设计。我们的I-Purge®和I-Purge ®X水囊均可转换，采用创新的模块化设计！

I-Purge® Mod-A 适配器： Mod-A I-Purge® 水囊的快速连接扩散器

I-Purge® Mod-B 适配器： 一根带接头的软管，用来连接你的I-Purge® Mod B水囊和氩气罐

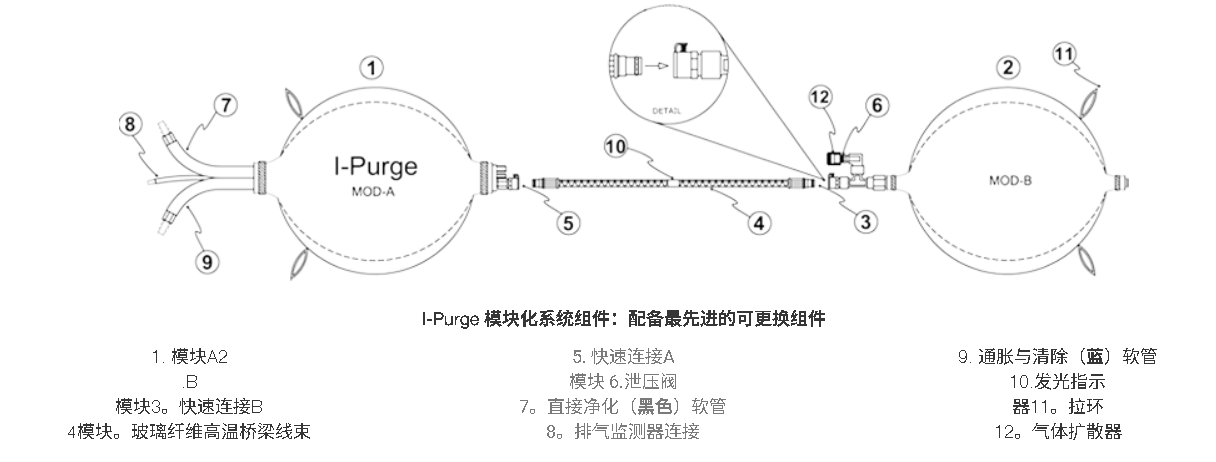

I-Purge的工作原理

型号与尺寸

Item No

Dimensions

Standard Harness Length

Description


English

Metric

English

Metric


ABLD 2

2″

51 mm

11″

279 mm

2″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 3

3″

76 mm

11″

279 mm

3″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 4

4″

102 mm

11″

279 mm

4″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 5

5″

127 mm

11″

279 mm

5″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 6

6″

152 mm

11″

279 mm

6″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 8

8″

203 mm

11″

279 mm

8″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 10

10″

254 mm

12″

305 mm

10″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 12

12″

305 mm

12″

305 mm

12″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 14

14″

356 mm

16″

406 mm

14″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 16

16″

406 mm

16″

406 mm

16″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 18

18″

457 mm

16″

406 mm

18″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 20

20″

508 mm

18″

457 mm

20″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 22

22″

559 mm

18″

457 mm

22″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 24

24″

610 mm

18″

457 mm

24″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 26

26″

660 mm

20″

509 mm

26″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 28

28″

711 mm

20″

509 mm

28″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 30

30″

762 mm

20″

509 mm

30″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 32

32″

813 mm

20″

509 mm

32″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 34

34″

864 mm

20″

509 mm

34″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 36

36″

914 mm

20″

509 mm

36″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 38

38″

965 mm

36″

914 mm

38″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 40

40″

1016 mm

36″

914 mm

40″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 42

42″

1066 mm

36″

914 mm

42″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 44

44″

1117 mm

36″

914 mm

44″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 46

46″

1168 mm

42″

1067 mm

46″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 48

48″

1219 mm

42″

1067 mm

48″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 50

50″

1270 mm

42″

1067 mm

50″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 52

52″

1321 mm

42″

1067 mm

52″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 54

54″

1372 mm

42″

1067 mm

54″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 56

56″

1422 mm

42″

1067 mm

56″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 58

58″

1473 mm

42″

1067 mm

58″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 60

60″

1524 mm

42″

1067 mm

60″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 62

62″

1575 mm

42″

1067 mm

62″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 64

64″

1626 mm

42″

1067 mm

64″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 66

66″

1676 mm

42″

1067 mm

66″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 68

68″

1727 mm

42″

1067 mm

68″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 70

70″

1778 mm

42″

1067 mm

70″ I-Purge Double Purge Bag System with High Heat Harness


I-Purge Isolator®

Item No

Dimensions

Description


English

metric


ISO 2

2"

51 mm

2" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 3

3"

76 mm

3" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 4

4"

102 mm

4" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 5

5"

127 mm

5" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 6

6"

152 mm

6" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 8

8"

203 mm

8" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 10

10"

254 mm

10" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 12

12"

305 mm

12" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 14

14"

356 mm

14" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 16

16"

406 mm

16" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 18

18"

457 mm

18" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 20

20"

508 mm

20" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 22

22"

559 mm

22" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 24

24"

610 mm

24" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 26

26"

660 mm

26" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 28

28"

711 mm

28" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 30

30"

762 mm

30" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 32

32"

813 mm

32" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 34

34"

864 mm

34" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 36

36"

914 mm

36" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 38

38"

965 mm

38" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 40

40"

1016 mm

40" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 42

42"

1066 mm

42" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 44

44"

1117 mm

44" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 46

46"

1168 mm

46" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 48

48"

1219 mm

48" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 50

50"

1270 mm

50" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 52

52"

1321 mm

52" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 54

54"

1372 mm

54" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 56

56"

1422 mm

56" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 58

58"

1473 mm

58" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 60

60"

1524 mm

60" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 62

62"

1575 mm

62" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 64

64"

1626 mm

64" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 66

66"

1676 mm

66" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 68

68"

1727 mm

68" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 70

70"

1778 mm

70" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

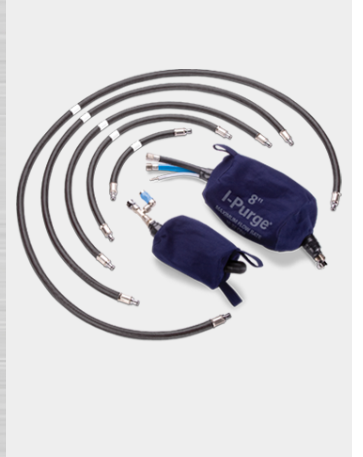

附件组件可选线束长度

Item No

Dimensions

Description


English

Metric


ABLD-ELH-24

24"

610 mm

24" (2′) Extended Length High Heat Harness

ABLD-ELH-36

36"

914 mm

36" (3′) Extended Length High Heat Harness

ABLD-ELH-48

48"

1219 mm

48" (4′) Extended Length High Heat Harness

ABLD-ELH-72

72"

1828 mm

72" (6′) Extended Length High Heat Harness

ABLD-ELH-CUSTOM

Any Size

Any Size

Custom Lengths Available Upon Request

ABLD-CNADP

NA

NA

1/4" Female MPT to 1/4" Female BSPP Conversion
